All MOSFET. AP15P06D Datasheet



AP15P06D Datasheet and Replacement


   Type Designator: AP15P06D
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 34.7 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 18.8 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 19.8 nS
   Cossⓘ - Output Capacitance: 97.3 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.105 Ohm
   Package: TO252


 AP15P06D substitution

   - MOSFET ⓘ Cross-Reference Search



AP15P06D Datasheet (PDF)

 ..1. Size:1573K  cn apm
 ap15p06d.pdf pdf_icon

AP15P06D

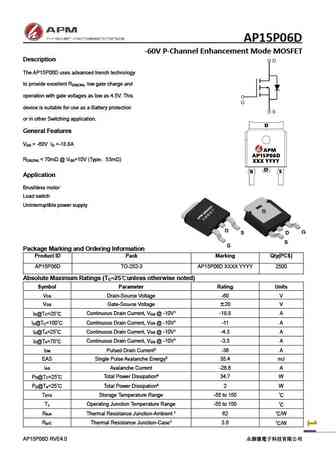

AP15P06D -60V P-Channel Enhancement Mode MOSFET Description The AP15P06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -60V I =-18.8A DS DR

 0.1. Size:1789K  cn apm
 ap15p06df.pdf pdf_icon

AP15P06D

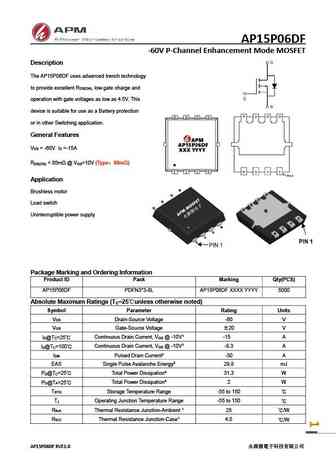

AP15P06DF -60V P-Channel Enhancement Mode MOSFET Description The AP15P06DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -60V I =-15A DS DR

 8.1. Size:1544K  1
 ap15p03q.pdf pdf_icon

AP15P06D

 8.2. Size:1544K  allpower
 ap15p03q.pdf pdf_icon

AP15P06D

SHOW MORE
