   Type Designator: AP200N04TLG5
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 130 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 200 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 7 nS
   Cossⓘ - Output Capacitance: 1099 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.004 Ohm
   Package: TOLLA-8L


 AP200N04TLG5 substitution

   - MOSFET ⓘ Cross-Reference Search



AP200N04TLG5 Datasheet (PDF)

 ..1. Size:1341K  cn apm
 ap200n04tlg5.pdf pdf_icon

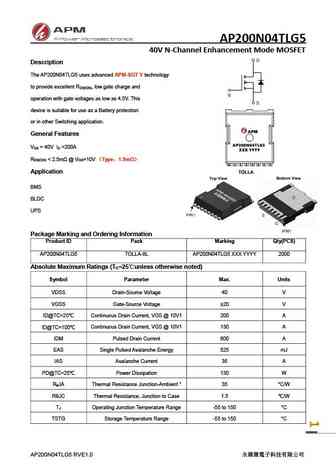

AP200N04TLG5

AP200N04TLG5 40V N-Channel Enhancement Mode MOSFET Description The AP200N04TLG5 uses advanced APM-SGT V technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =200A DS DR
