ATM10N10SQ Datasheet. Specs and Replacement

Type Designator: ATM10N10SQ

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 7.5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 21.6 nS

Cossⓘ - Output Capacitance: 30 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.105 Ohm

Package: SOT89

ATM10N10SQ substitution

- MOSFET ⓘ Cross-Reference Search



ATM10N10SQ datasheet

 ..1. Size:340K  agertech
 atm10n10sq.pdf pdf_icon

ATM10N10SQ

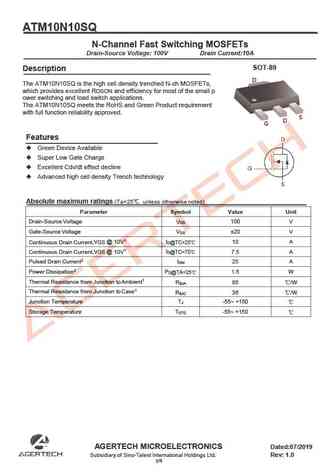

ATM10N10SQ N-Channel Fast Switching MOSFETs Drain-Source Voltage 100V Drain Current 10A SOT-89 Description The ATM10N10SQ is the high cell density trenched N-ch MOSFETs, which provides excellent RDSON and efficiency for most of the small p ower switching and load switch applications. The ATM10N10SQ meets the RoHS and Green Product requirement with full function reliability approved. ... See More ⇒

 8.1. Size:694K  agertech
 atm10n65tf.pdf pdf_icon

ATM10N10SQ

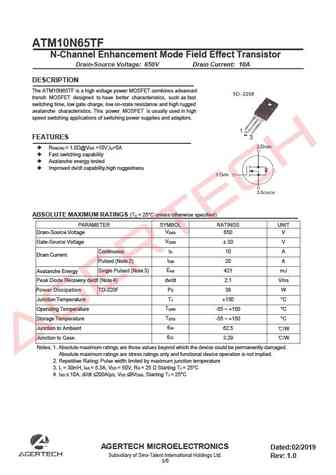

ATM10N65TF N-Channel Enhancement Mode Field Effect Transistor Drain-Source Voltage 650V Drain Current 10A DESCRIPTION The ATM10N65TF is a high voltage power MOSFET combines advanced trench MOSFET designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and high rugged avalanche characteristics. This power MOSFET is usually used in h... See More ⇒
