All MOSFET. AP5N15MSI Datasheet



AP5N15MSI Datasheet and Replacement


   Type Designator: AP5N15MSI
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 2 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 3 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 9.3 nS
   Cossⓘ - Output Capacitance: 55 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.32 Ohm
   Package: SOT223


 AP5N15MSI substitution

   - MOSFET ⓘ Cross-Reference Search



AP5N15MSI Datasheet (PDF)

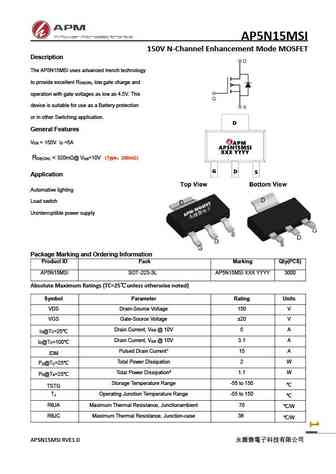

 ..1. Size:1255K  cn apm
 ap5n15msi.pdf pdf_icon

AP5N15MSI

AP5N15MSI 150V N-Channel Enhancement Mode MOSFET Description The AP5N15MSI uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 150V I =5A DS D R

 9.1. Size:1712K  cn apm
 ap5n10mi.pdf pdf_icon

AP5N15MSI

AP5N10MI 100V N-Channel Enhancement Mode MOSFET Description The AP5N10MI uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =5A DS DR

 9.2. Size:1620K  cn apm
 ap5n10si.pdf pdf_icon

AP5N15MSI

AP5N10SI 100V N-Channel Enhancement Mode MOSFET Description The AP5N10SI uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =5A DS DR

 9.3. Size:1018K  cn apm
 ap5n10bi.pdf pdf_icon

AP5N15MSI

AP5N10BI100V N-Channel Enhancement Mode MOSFETDescriptionThe AP5N10BI uses advanced APM-SGTII technologyto provide excellent R , low gate charge andDS(ON)operation with gate voltages as low as 4.5V. Thisdevice is suitable for use as a Battery protectionor in other Switching application.General FeaturesV = 100V I =5.0ADS DR
