AP68N04NF Datasheet: MOSFET, N-Ch, 40V, 68A. Full specification with pinout and replacement list

AP68N04NF Datasheet. Specs and Replacement

Type Designator: AP68N04NF 📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 20 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 68 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 5.6 nS

Cossⓘ - Output Capacitance: 193 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.015 Ohm

Package: PDFN5X6-8L

📄📄 Copy

AP68N04NF substitution

- MOSFET ⓘ Cross-Reference Search

AP68N04NF datasheet

..1. Size:1359K cn apm
ap68n04nf.pdf pdf_icon

AP68N04NF 40V N-Channel Enhancement Mode MOSFET Description The AP68N04NF uses advanced APM-SGT V technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =68A DS D R ... See More ⇒

7.1. Size:1378K cn apm
ap68n04df.pdf pdf_icon

AP68N04DF 40V N-Channel Enhancement Mode MOSFET Description The AP68N04DF uses advanced APM-SGT V technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =68A DS D R ... See More ⇒

8.1. Size:1612K 1

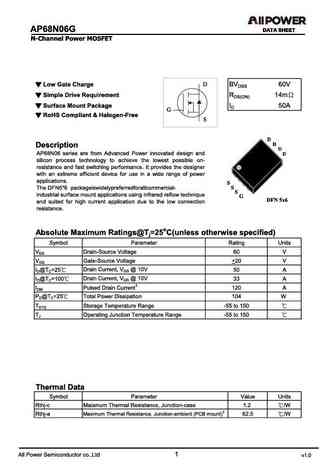

ap68n06g.pdf pdf_icon
