AP6G03LI Datasheet. Specs and Replacement

Type Designator: AP6G03LI  📄📄

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5.8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 46 nS

Cossⓘ - Output Capacitance: 62 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.04 Ohm

Package: SOT23-6L

  📄📄 Copy

AP6G03LI substitution

- MOSFET ⓘ Cross-Reference Search



AP6G03LI datasheet

 ..1. Size:1723K  cn apm
 ap6g03li.pdf pdf_icon

AP6G03LI

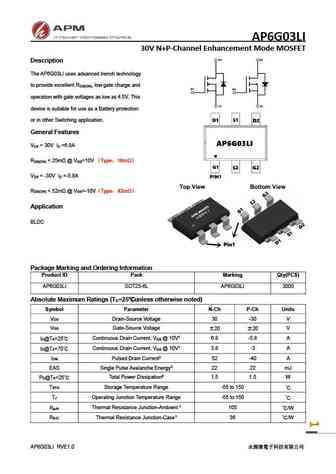

AP6G03LI 30V N+P-Channel Enhancement Mode MOSFET Description The AP6G03LI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =6.8A DS D R ... See More ⇒

 8.1. Size:2445K  cn apm
 ap6g03s.pdf pdf_icon

AP6G03LI

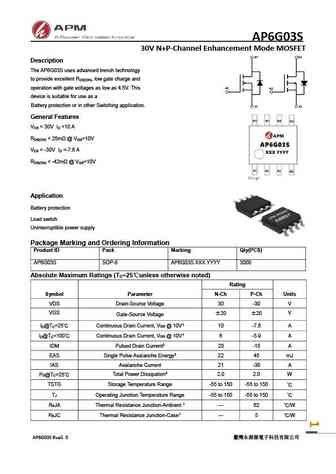

AP6G03S 30V N+P-Channel Enhancement Mode MOSFET Description The AP6G03S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =10 A DS D R ... See More ⇒

 9.1. Size:3407K  cn apm
 ap6g04s.pdf pdf_icon

AP6G03LI

AP6G04S 40V N+P-Channel Enhancement Mode MOSFET Description The AP6G04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =6A DS D R ... See More ⇒
