AP30P02DF Datasheet: MOSFET, P-Ch, 20V, 30A. Full specification with pinout and replacement list

AP30P02DF Datasheet. Specs and Replacement

Type Designator: AP30P02DF 📄📄

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 24 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 31 nS

Cossⓘ - Output Capacitance: 242 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm

Package: PDFN3X3-8L

📄📄 Copy

AP30P02DF substitution

- MOSFET ⓘ Cross-Reference Search

AP30P02DF datasheet

..1. Size:1398K cn apm
ap30p02df.pdf pdf_icon

AP30P02DF -20V P-Channel Enhancement Mode MOSFET Description The AP30P02DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-30A DS D R ... See More ⇒

8.1. Size:592K allpower

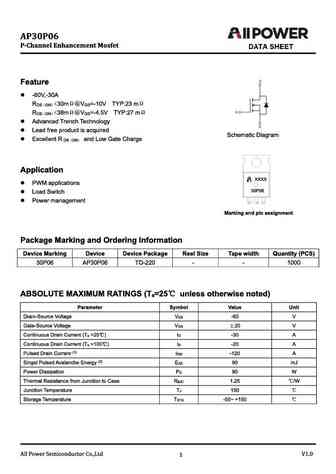

ap30p06.pdf pdf_icon

... See More ⇒

8.2. Size:680K allpower

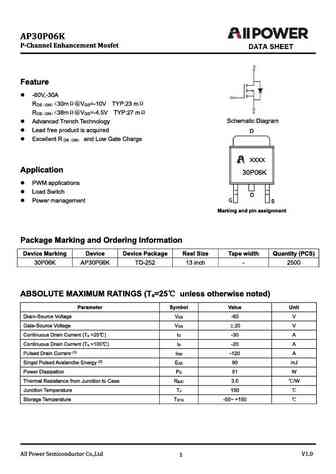

ap30p06k.pdf pdf_icon

... See More ⇒

8.3. Size:1462K cn apm
ap30p03df.pdf pdf_icon

AP30P03DF 30V P-Channel Enhancement Mode MOSFET Description The AP30P03DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-30A DS D R ... See More ⇒
