AGM304AP Datasheet. Specs and Replacement

Type Designator: AGM304AP  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 20 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 40 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 40 nS

Cossⓘ - Output Capacitance: 398 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0045 Ohm

Package: PDFN3.3X3.3

  📄📄 Copy

AGM304AP substitution

- MOSFET ⓘ Cross-Reference Search



AGM304AP datasheet

 ..1. Size:991K  cn agmsemi
 agm304ap.pdf pdf_icon

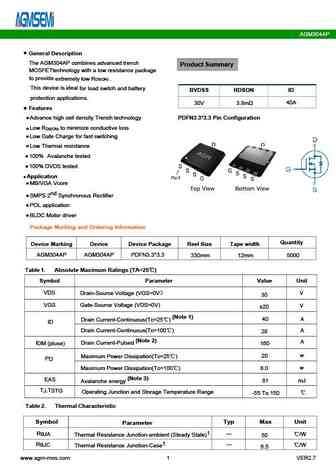

AGM304AP

AGM304AP General Description The AGM304AP combines advanced trench Product Summary MOSFETtechnology with a low resistance package to provide extremely low R . DS(ON) This device is ideal for load switch and battery BVDSS RDSON ID protection applications. 30V 3.8m 40A Features Advance high cell density Trench technology PDFN3.3*3.3 Pin Configuration Low R to mi... See More ⇒

 0.1. Size:972K  cn agmsemi
 agm304ap-b.pdf pdf_icon

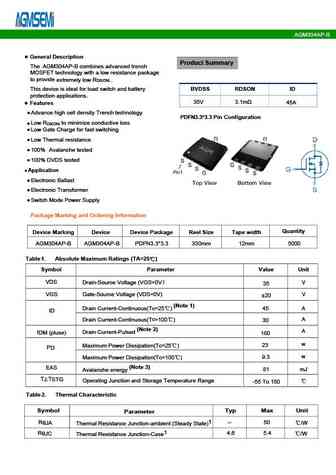

AGM304AP

AGM304AP-B TYPICAL ELECTRICAL AND THERMAL CHARACTERIS Figure 2 Transfer Characteristics (Note E) Figure 1 On-Region Characteristics (Note E) Figure 4 On-Resistance vs. Junction Figure 3 On-Resistance vs. Drain Current and Gate Voltage (Note E) Temperature (Note E) Figure 5 On-Resistance vs. Gate-Source Figure 6 Body-Diode Characteristics (Note E) Voltage (Note E) www.agm... See More ⇒

 7.1. Size:1312K  cn agmsemi
 agm304a.pdf pdf_icon

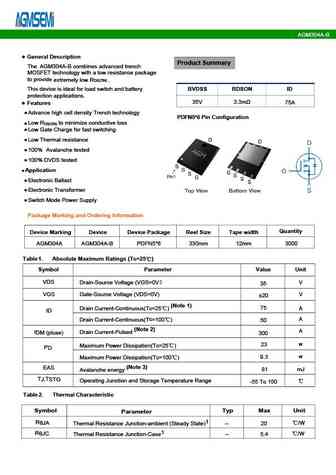

AGM304AP

AGM304A General Description Product Summary The AGM304A combines advanced trench MOSFET to provide technology with a low resistance package extremely low R . DS(ON) This device is ideal for load switch and battery BVDSS RDSON ID protection applications. 30V 2.8m 100A Features PDFN5*6 Pin Configuration Advance high cell density Trench technology Low R to minimi... See More ⇒

 7.2. Size:1271K  cn agmsemi
 agm304a-b.pdf pdf_icon

AGM304AP

AGM304A-B TYPICAL ELECTRICAL AND THERMAL CHARACTERIS Figure 2 Transfer Characteristics (Note E) Figure 1 On-Region Characteristics (Note E) Figure 4 On-Resistance vs. Junction Figure 3 On-Resistance vs. Drain Current and Gate Voltage (Note E) Temperature (Note E) Figure 5 On-Resistance vs. Gate-Source Figure 6 Body-Diode Characteristics (Note E) Voltage (Note E) www.agm-... See More ⇒
