APG042N01D Datasheet. Specs and Replacement

Type Designator: APG042N01D  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 215 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 145 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 673 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0042 Ohm

Package: TO263

  📄📄 Copy

APG042N01D substitution

- MOSFET ⓘ Cross-Reference Search



APG042N01D datasheet

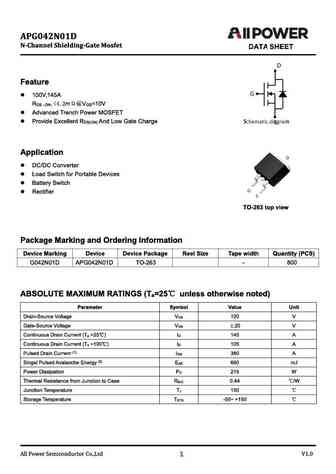

 ..1. Size:1107K  allpower
 apg042n01d.pdf pdf_icon

APG042N01D

... See More ⇒

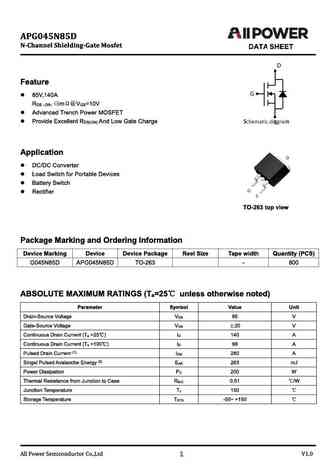

 9.1. Size:810K  allpower
 apg045n85d.pdf pdf_icon

APG042N01D

... See More ⇒

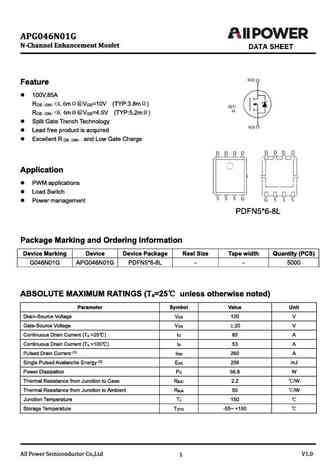

 9.2. Size:778K  allpower
 apg046n01g.pdf pdf_icon

APG042N01D

... See More ⇒

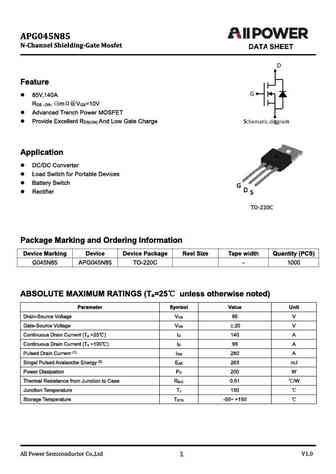

 9.3. Size:861K  allpower
