AUN062N08BG MOSFET Datasheet: N-Ch, 85V, 60A. Full specification with pinout and replacement list

AUN062N08BG Specs and Replacement

Type Designator: AUN062N08BG

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 74 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 85 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 60 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 13.7 nS

Cossⓘ - Output Capacitance: 674 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0062 Ohm

Package: DFN5X6

AUN062N08BG substitution

- MOSFET ⓘ Cross-Reference Search

AUN062N08BG datasheet

..1. Size:498K cn anhi
aua062n08bg aub062n08bg aup062n08bg aun062n08bg aud062n08bg.pdf pdf_icon

AUA 8BG, AU N08BG, AUP062 G, A062N08 UB062N 2N08BG AUN 8BG, AU N08BG N062N08 UD062N MO con N-Chan OSFET Silic nnel MOS 1. Applicatio ons Synchronou on in SMPS, us rectificatio Hard switch h speed circu hing and High uit DC/DC in te elecoms and inductrial 2. Features Low drain-s sistance RD 6m (typ.) source on-res DS(ON) = 5.6 High speed power switc ching Enhance... See More ⇒

9.1. Size:967K cn anhi

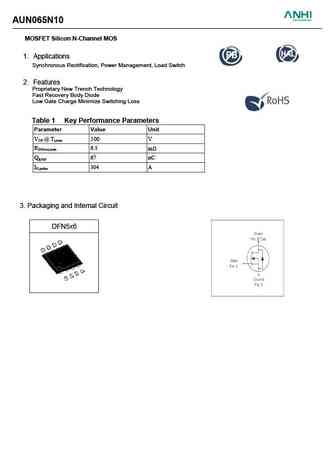

aun065n10.pdf pdf_icon

AUN065N10 MOSFET Silicon N-Channel MOS 1. Applications Synchronous Rectification, Power Management, Load Switch 2. Features Proprietary New Trench Technology Fast Recovery Body Diode Low Gate Charge Minimize Switching Loss Table 1 Key Performance Parameters Parameter Value Unit V 100 V DS @ T j,max R 6.5 DS(on),max m Q 67 nC g,typ I 304 A D,pulse 3. Packa... See More ⇒

9.2. Size:740K cn anhi

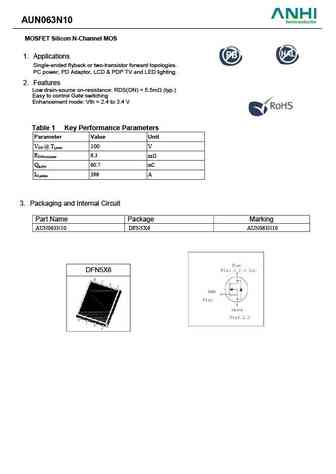

aun063n10.pdf pdf_icon

AUN063N10 MOSFET Silicon N-Channel MOS 1. Applications Single-ended flyback or two-transistor forward topologies. PC power, PD Adaptor, LCD & PDP TV and LED lighting. 2. Features Low drain-source on-resistance RDS(ON) = 5.5m (typ.) Easy to control Gate switching Enhancement mode Vth = 2.4 to 3.4 V Table 1 Key Performance Parameters Parameter Value Unit V 100 V DS @ ... See More ⇒

9.3. Size:635K cn anhi

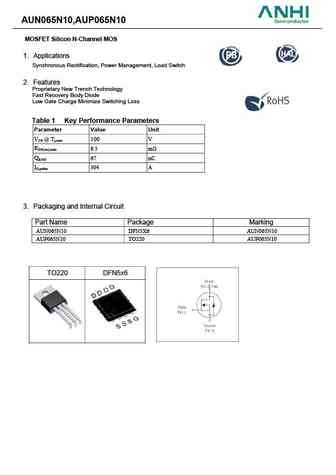

aun065n10 aup065n10.pdf pdf_icon

AUN065N10,AUP065N10 MOSFET Silicon N-Channel MOS 1. Applications Synchronous Rectification, Power Management, Load Switch 2. Features Proprietary New Trench Technology Fast Recovery Body Diode Low Gate Charge Minimize Switching Loss Table 1 Key Performance Parameters Parameter Value Unit V 100 V DS @ T j,max R 6.5 DS(on),max m Q 67 nC g,typ I 304 A D,pulse ... See More ⇒
