CM3400 Specs and Replacement

Type Designator: CM3400

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.4 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 10 V

|Id| ⓘ - Maximum Drain Current: 5.8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 2.5 nS

Cossⓘ - Output Capacitance: 70 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.027 Ohm

Package: SOT23

CM3400 substitution

- MOSFET ⓘ Cross-Reference Search



CM3400 datasheet

 ..1. Size:724K  cn appliedpower

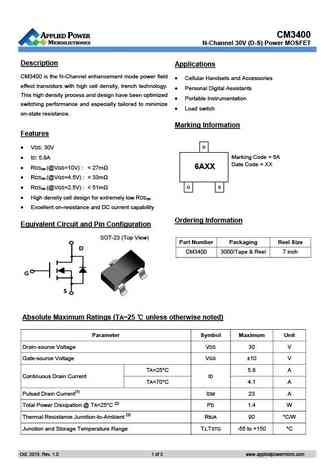

 cm3400.pdf pdf_icon

CM3400

CM3400 N-Channel 30V (D-S) Power MOSFET Description Applications CM3400 is the N-Channel enhancement mode power field Cellular Handsets and Accessories effect transistors with high cell density, trench technology. Personal Digital Assistants This high density process and design have been optimized Portable Instrumentation switching performance and especially tai... See More ⇒

 9.1. Size:699K  cn appliedpower

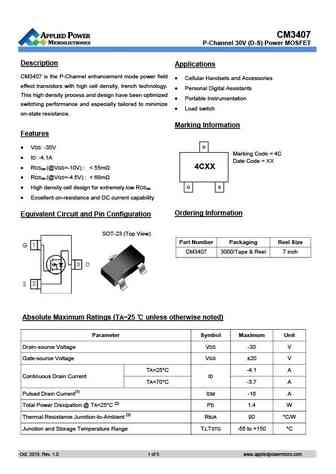

 cm3407.pdf pdf_icon

CM3400

CM3407 P-Channel 30V (D-S) Power MOSFET Description Applications CM3407 is the P-Channel enhancement mode power field Cellular Handsets and Accessories effect transistors with high cell density, trench technology. Personal Digital Assistants This high density process and design have been optimized Portable Instrumentation switching performance and especially tai... See More ⇒
