BM8205 Datasheet. Specs and Replacement

Type Designator: BM8205  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.4 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 4 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 5 nS

Cossⓘ - Output Capacitance: 330 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.026 Ohm

Package: SOT23-6L

  📄📄 Copy

BM8205 substitution

- MOSFET ⓘ Cross-Reference Search



BM8205 datasheet

 ..1. Size:723K  born
 bm8205.pdf pdf_icon

BM8205

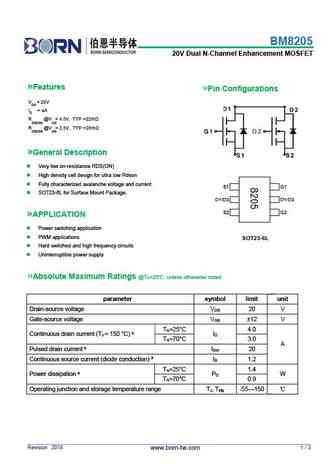

BM8205 20V Dual N-Channel Enhancement MOSFET Features Pin Configurations V = 20V DS I D = 4A R @V = 4.5V, TYP =22m DS(ON) GS R @V = 2.5V, TYP =28m DS(ON) GS General Description Very low on-resistance RDS(ON) High density cell design for ultra low Rdson Fully characterized avalanche voltage and current SOT23-6L for Surface Mount Package. APPLIC... See More ⇒
