CS85105A Datasheet. Specs and Replacement

Type Designator: CS85105A  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 99 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 83 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 82 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 32.3 nS

Cossⓘ - Output Capacitance: 1051 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0068 Ohm

Package: TO220

  📄📄 Copy

CS85105A substitution

- MOSFET ⓘ Cross-Reference Search



CS85105A datasheet

 ..1. Size:540K  cass
 cs85105a.pdf pdf_icon

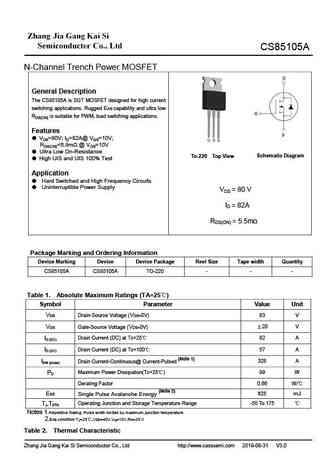

CS85105A

CS85105A N-Channel Trench Power MOSFET General Description The CS85105A is SGT MOSFET designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching applications. Features VDS=80V; ID=82A@ VGS=10V; RDS(ON)... See More ⇒
