CS95118 Datasheet. Specs and Replacement

Type Designator: CS95118  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 139 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 95 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 118 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 32.3 nS

Cossⓘ - Output Capacitance: 1161 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0063 Ohm

Package: TO220

  📄📄 Copy

CS95118 substitution

- MOSFET ⓘ Cross-Reference Search



CS95118 datasheet

 ..1. Size:577K  cass
 cs95118.pdf pdf_icon

CS95118

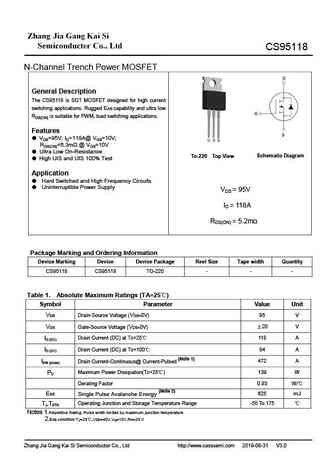

CS95118 N-Channel Trench Power MOSFET General Description The CS95118 is SGT MOSFET designed for high current switching applications. Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching applications. Features VDS=95V; ID=118A@ VGS=10V; RDS(ON)... See More ⇒
