All MOSFET. BLS2933-100 Datasheet





BLS2933-100 Datasheet and Replacement


   Type Designator: BLS2933-100
   Type of Transistor: LDMOS
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 100 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 32 V
   |Id| ⓘ - Maximum Drain Current: 12 A
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.09 Ohm
   Package: SOT502A


 BLS2933-100 substitution

   - MOSFET ⓘ Cross-Reference Search





BLS2933-100 Datasheet (PDF)

 ..1. Size:80K  philips
 bls2933-100.pdf pdf_icon

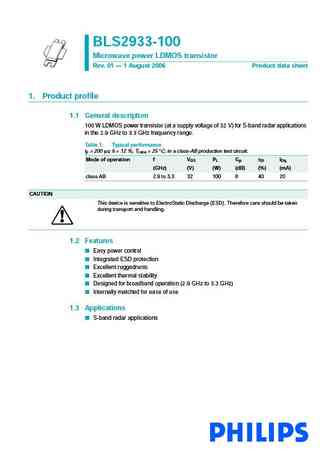

BLS2933-100

BLS2933-100Microwave power LDMOS transistorRev. 01 1 August 2006 Product data sheet1. Product profile1.1 General description100 W LDMOS power transistor (at a supply voltage of 32 V) for S-band radar applicationsin the 2.9 GHz to 3.3 GHz frequency range.Table 1: Typical performancetp = 200 s; = 12 %; Tcase =25 C; in a class-AB production test circuit.Mode of operati
