AP10G04DF datasheet, аналоги, основные параметры

Наименование производителя: AP10G04DF  📄📄

Тип транзистора: MOSFET

Полярность: NP

Предельные значения

Pd ⓘ - Максимальная рассеиваемая мощность: 1.67 W

|Vds|ⓘ - Максимально допустимое напряжение сток-исток: 40 V

|Vgs|ⓘ - Максимально допустимое напряжение затвор-исток: 20 V

|Id| ⓘ - Максимально допустимый постоянный ток стока: 9.8(7.5) A

Tj ⓘ - Максимальная температура канала: 150 °C

Электрические характеристики

tr ⓘ - Время нарастания: 2.2(15.7) ns

Cossⓘ - Выходная емкость: 76(134) pf

RDSonⓘ - Сопротивление сток-исток открытого транзистора: 0.026(0.045) Ohm

Тип корпуса: PDFN3X3-8L

  📄📄 Копировать

Аналог (замена) для AP10G04DF

- подборⓘ MOSFET транзистора по параметрам



AP10G04DF даташит

 ..1. Size:2666K  cn apm
 ap10g04df.pdf pdf_icon

AP10G04DF

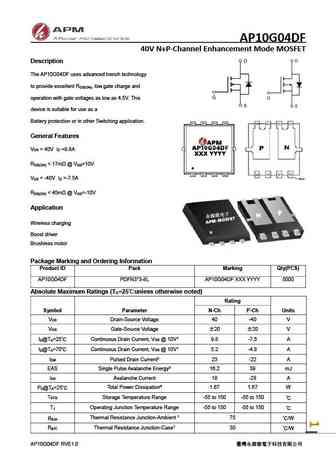

AP10G04DF 40V N+P-Channel Enhancement Mode MOSFET Description The AP10G04DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =9.8A DS D R

 7.1. Size:2001K  cn apm
 ap10g04s.pdf pdf_icon

AP10G04DF

AP10G04S 40V N+P-Channel Enhancement Mode MOSFET Description The AP10G04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =9.8A DS D R

 8.1. Size:2476K  cn apm
 ap10g03s.pdf pdf_icon

AP10G04DF

AP10G03S 30V N+P-Channel Enhancement Mode MOSFET Description The AP10G03S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =12 A DS D R

 8.2. Size:2838K  cn apm
 ap10g06nf.pdf pdf_icon

AP10G04DF

AP10G06NF 60V N+P-Channel Enhancement Mode MOSFET Description The AP10G006NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =10A DS D R
