AP15G04NF - аналоги и даташиты транзистора



AP15G04NF - Даташиты. Аналоги. Основные параметры


   Наименование производителя: AP15G04NF
   Тип транзистора: MOSFET
   Полярность: NP
   Pd ⓘ - Максимальная рассеиваемая мощность: 25 W
   |Vds|ⓘ - Предельно допустимое напряжение сток-исток: 40 V
   |Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 20 V
   |Id| ⓘ - Максимально допустимый постоянный ток стока: 21(18) A
   Tj ⓘ - Максимальная температура канала: 150 °C
   tr ⓘ - Время нарастания: 12.8 ns
   Cossⓘ - Выходная емкость: 107 pf
   Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.017(0.045) Ohm
   Тип корпуса: PDFN5X6-8L

 Аналог (замена) для AP15G04NF



AP15G04NF Datasheet (PDF)

 ..1. Size:2122K  cn apm
 ap15g04nf.pdf pdf_icon

AP15G04NF

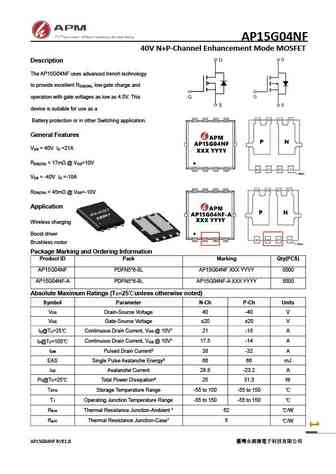

AP15G04NF 40V N+P-Channel Enhancement Mode MOSFET Description The AP15G04NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =21A DS D R

 8.1. Size:1771K  cn apm
 ap15g03nf.pdf pdf_icon

AP15G04NF

AP15G03NF 30V N+P-Channel Enhancement Mode MOSFET Description The AP15G03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =18A DS D R

 8.2. Size:2641K  cn apm
 ap15g03df.pdf pdf_icon

AP15G04NF

AP15G03DF 30V N+P-Channel Enhancement Mode MOSFET Description The AP15G03DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =19.3A DS D R
