Биполярный транзистор 3CG1 Даташит. Аналоги

   Наименование производителя: 3CG1
   Тип материала: Si
   Полярность: PNP
   Максимальная рассеиваемая мощность (Pc): 0.3 W
   Макcимально допустимое напряжение коллектор-база (Ucb): 20 V
   Макcимально допустимое напряжение коллектор-эмиттер (Uce): 15 V
   Макcимально допустимое напряжение эмиттер-база (Ueb): 4 V
   Макcимальный постоянный ток коллектора (Ic): 0.05 A
   Предельная температура PN-перехода (Tj): 175 °C
   Граничная частота коэффициента передачи тока (ft): 100 MHz
   Статический коэффициент передачи тока (hfe): 25
   Корпус транзистора: TO92 SOT23

Аналог (замена) для 3CG1

- подбор ⓘ биполярного транзистора по параметрам

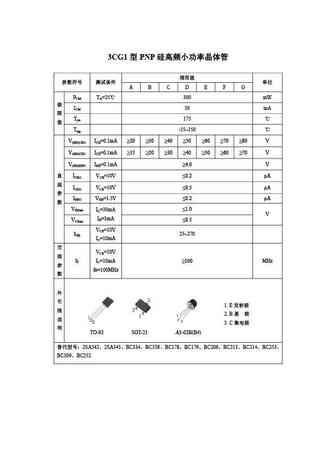

3CG1 Datasheet (PDF)

..1. Size:133K china
3cg1.pdf pdf_icon

3CG1 PNP A B C D E F G PCM TA=25 300 mW ICM 50 mA Tjm 175 Tstg -55~150 V(BR)CBO ICB=0.1mA 20 30 40 50 60 70 80 V V(BR)CEO ICE=0.1mA 15 20 30 40 50 60 70 V V(BR)EBO IEB=0.1mA 4.0 V ICBO VCB=10V 0.2 A ICEO VCE=10V
