All Transistors. KTX201E Datasheet



KTX201E Datasheet and Replacement


   Type Designator: KTX201E
   Material of Transistor: Si
   Polarity: NPN*PNP
   Maximum Collector Power Dissipation (Pc): 0.2 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 1 V
   Maximum Collector Current |Ic max|: 0.15 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 80 MHz
   Collector Capacitance (Cc): 2(4) pF
   Forward Current Transfer Ratio (hFE), MIN: 120
   Noise Figure, dB: -
   Package: TESV

 KTX201E Transistor Equivalent Substitute - Cross-Reference Search



KTX201E Datasheet (PDF)

 ..1. Size:61K  kec
 ktx201e.pdf pdf_icon

KTX201E

SEMICONDUCTOR KTX201E TECHNICAL DATA EPITAXIAL PLANAR NPN/PNP TRANSISTOR GENERAL PURPOSE APPLICATION. B FEATURES B1 Including two devices in TESV. (Thin Extreme Super mini type with 5 pin) Simplify circuit design. 1 5 DIM MILLIMETERS _ A 1.6 0.05 + Reduce a quantity of parts and manufacturing process. _ + A1 1.0 0.05 2 _ + B 1.6 0.05 _ + B1 1.2 0.05 C 0.50 3 4 _ + D... See More ⇒

 8.1. Size:61K  kec
 ktx201u.pdf pdf_icon

KTX201E

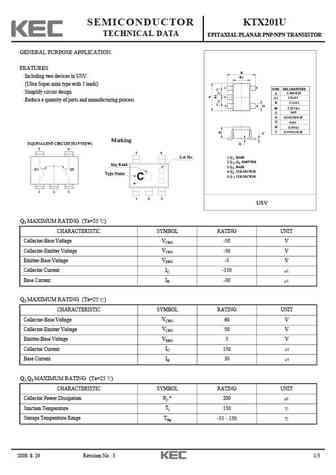

SEMICONDUCTOR KTX201U TECHNICAL DATA EPITAXIAL PLANAR PNP/NPN TRANSISTOR GENERAL PURPOSE APPLICATION. FEATURES B Including two devices in USV. B1 (Ultra Super mini type with 5 leads) 1 5 DIM MILLIMETERS _ Simplify circuit design. 2.00 0.20 + A _ 2 + 1.3 0.1 A1 Reduce a quantity of parts and manufacturing process _ + B 2.1 0.1 3 4 D _ + B1 1.25 0.1 C 0.65 D 0.2+0.10/-0... See More ⇒
