All Transistors. FJV42MTF Datasheet



FJV42MTF Datasheet and Replacement


   Type Designator: FJV42MTF
   SMD Transistor Code: 1DF
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.35 W
   Maximum Collector-Base Voltage |Vcb|: 350 V
   Maximum Collector-Emitter Voltage |Vce|: 350 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 50 MHz
   Collector Capacitance (Cc): 3 pF
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -
   Package: SOT-23


 FJV42MTF Substitution

   - BJT ⓘ Cross-Reference Search



FJV42MTF Datasheet (PDF)

 ..1. Size:97K  fairchild semi
 fjv42mtf.pdf pdf_icon

FJV42MTF

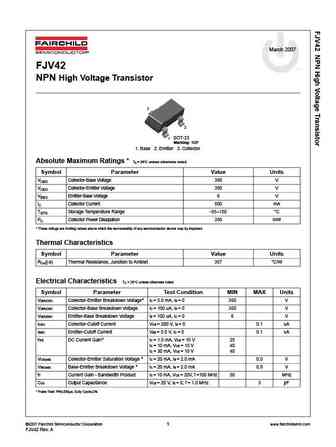

March 2007FJV42NPN High Voltage Transistor3 2SOT-231Marking: 1DF1. Base 2. Emitter 3. CollectorAbsolute Maximum Ratings * Ta = 25C unless otherwise notedSymbol Parameter Value UnitsVCBO Collector-Base Voltage 350 VVCEO Collector-Emitter Voltage 350 VVEBO Emitter-Base Voltage 6 VIC Collector Current 500 mATSTG Storage Temperature Range -55~150 CPC Collector Po

 ..2. Size:273K  onsemi
 fjv42mtf.pdf pdf_icon

FJV42MTF

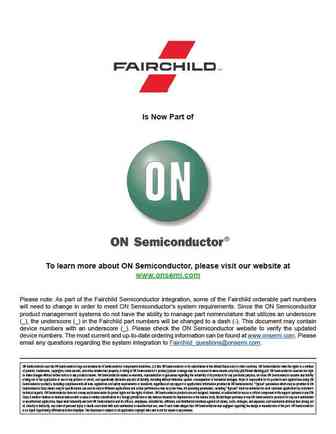

Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
