All Transistors. A1480 Datasheet



A1480 Datasheet and Replacement


   Type Designator: A1480
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 7 W
   Maximum Collector-Base Voltage |Vcb|: 300 V
   Maximum Collector-Emitter Voltage |Vce|: 300 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 150 MHz
   Collector Capacitance (Cc): 3.1 pF
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -
   Package: TO126


 A1480 Substitution

   - BJT ⓘ Cross-Reference Search



A1480 Datasheet (PDF)

 ..1. Size:322K  fgx
 a1480.pdf pdf_icon

A1480

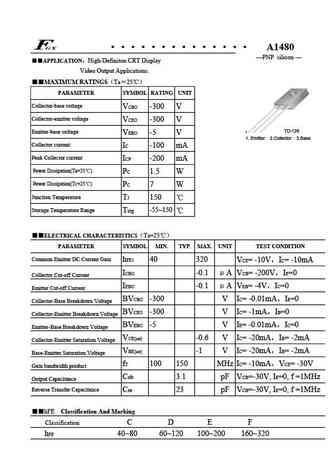

A1480PNP silicon APPLICATIONHigh-Definiton CRT Display Video Output Applications.MAXIMUM RATINGSTa25PARAMETER SYMBOL RATING UNITCollector-base voltageVCBO -300 VCollector-emitter voltageVCEO -300 VTO-126Emitter-base voltage 1VEBO -5 V1. Emitter 2.Collector 3.BaseCollector currentIC -100 mAPeak Collector cur

 0.1. Size:175K  sanyo
 2sa1480 2sc3790.pdf pdf_icon

A1480

Ordering number:EN2254PNP/NPN Epitaxial Planar Silicon Transistors2SA1480/2SC3790High-Definiton CRT DisplayVideo Output ApplicationsFeatures Package Dimensions High breakdown voltage (VCEO 300V).unit:mm Small reverse transfer capacitance and excellent high2042Afrequency characteristic[2SA1480/2SC3790]: Cre=1.8pF (NPN), 2.3pF (PNP). Adoption of MBIT process.

 0.2. Size:278K  lzg
 2sa1480 3ca1480.pdf pdf_icon

A1480

2SA1480(3CA1480) PNP /SILICON PNP TRANSISTOR : Purpose: High-definition CRT display video output applications. : Features: High breakdown voltage, small reverse transfer capacitance and excellent high frequency characteristic. /Absolu

Datasheet: 2N3200 , 2N3201 , 2N3202 , 2N3203 , 2N3204 , 2N3205 , 2N3206 , 2N3207 , BC546 , 2N3209 , 2N3209AQF , 2N3209CSM , 2N3209DCSM , 2N3209L , 2N321 , 2N3210 , 2N3211 .

History: IMH6AFRA | 2SC3293 | 3TX004
