H327 Datasheet and Replacement


   Type Designator: H327
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.625 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 45 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 100(TYP) MHz
   Collector Capacitance (Cc): 8 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TO92


 H327 Substitution

   - BJT ⓘ Cross-Reference Search



H327 Datasheet (PDF)

 ..1. Size:67K  shantou-huashan
 h327.pdf pdf_icon

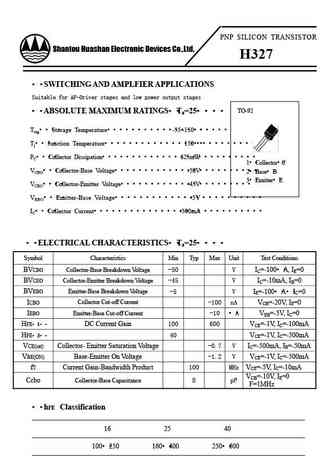

H327

P N P S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H327 SWITCHING AND AMPLFIER APPLICATIONS Suitable for AF-Driver stages and low power output stages ABSOLUTE MAXIMUM RATINGSTa=25 TO-92 TstgStorage Temperature -55~150TjJunction Temperature150PC

 0.1. Size:58K  shantou-huashan
 h3279.pdf pdf_icon

H327

P NP S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H3279 STROBE FLASH APPLICATIONS MEDIUM POWER AMPLIFIER APPLICATIONS ABSOLUTE MAXIMUM RATINGSTa=25 TO-92 TstgStorage Temperature -55~150TjJunction Temperature150PCCollector Dissipation

 0.2. Size:261K  inchange semiconductor
 iscnh327p.pdf pdf_icon

H327

isc N-Channel MOSFET Transistor ISCNH327PFEATURESDrain Current I = 200A@ T =25D CDrain Source Voltage-: V = 85V(Min)DSSStatic Drain-Source On-Resistance: R = 6m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONmotor drive, DC-DC converter, power switchand solenoid drive.
