All Transistors. RT3TTTM Datasheet



RT3TTTM Datasheet, Equivalent, Cross Reference Search

Type Designator: RT3TTTM

SMD Transistor Code: TTT

Material of Transistor: Si

Polarity: Pre-Biased-NPN*PNP

Built in Bias Resistor R1 = 200 kOhm

Maximum Collector Power Dissipation (Pc): 0.15 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 150 MHz

Forward Current Transfer Ratio (hFE), MIN: 100

Noise Figure, dB: -

Package: SC-88

RT3TTTM Transistor Equivalent Substitute - Cross-Reference Search



RT3TTTM Datasheet (PDF)

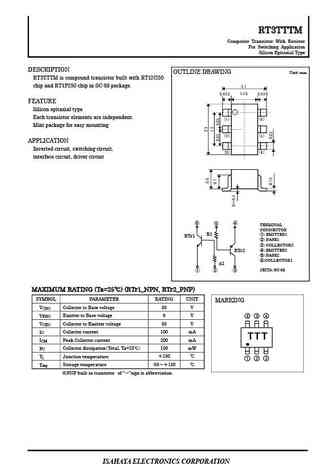

1.1. rt3tttm.pdf Size:166K _upd

RT3TTTM
RT3TTTM

 RT3TTTM Composite Transistor With Resistor For Switching Application Silicon Epitaxial Type DESCRIPTION OUTLINE DRAWING Unit:mm RT3TTTM is compound transistor built with RT1N250 chip and RT1P250 chip in SC-88 package. FEATURE Silicon epitaxial type Each transistor elements are independent. Mini package for easy mounting APPLICATION Inverted circuit, switching circuit,

Datasheet: RT3TBBM , RT3TCCM , RT3TDDM , RT3TFFM , RT3TGGM , RT3THHM , RT3TLLM , RT3TSSM , 2N222 , RT3X99M , RT3XAAM , RT5N136C , RT5N140C , RT5N141C , RT5N141S , RT5N14BC , RT5N227C .
