ISCN440P Datasheet and Replacement


   Type Designator: ISCN440P
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 30 W
   Maximum Collector-Base Voltage |Vcb|: 110 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TO220C


 ISCN440P Substitution

   - BJT ⓘ Cross-Reference Search



ISCN440P Datasheet (PDF)

 ..1. Size:237K  inchange semiconductor
 iscn440p.pdf pdf_icon

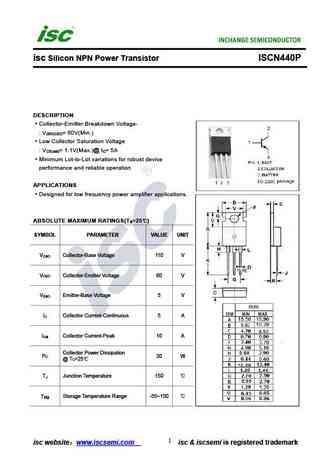

ISCN440P

isc Silicon NPN Power Transistor ISCN440PDESCRIPTIONCollector-Emitter Breakdown Voltage-: V = 60V(Min.)(BR)CEOLow Collector Saturation Voltage: V = 1.1V(Max.)@ I = 5ACE(sat) CMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for low frequency power amplifier applications.ABSOLUTE MAXIMUM RATINGS(T =25)aSY
