GA1L4Z Datasheet. Specs and Replacement

Type Designator: GA1L4Z  📄📄

SMD Transistor Code: L61_L62_L63

Material of Transistor: Si

Polarity: Pre-Biased-NPN

Built in Bias Resistor R1 = 47 kOhm

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.15 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Forward Current Transfer Ratio (hFE), MIN: 135

Noise Figure, dB: -

Package: SC70

  📄📄 Copy

 GA1L4Z Substitution

- BJT ⓘ Cross-Reference Search

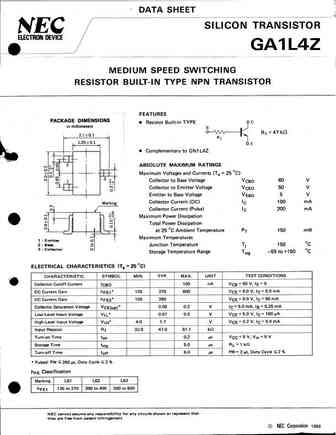

GA1L4Z datasheet

 ..1. Size:161K  1

 ga1l4z.pdf pdf_icon

GA1L4Z

... See More ⇒

Detailed specifications: 2SC945-L, 2SD882-E, 2SD882-P, 2SD882-Q, 2SA200-O, 2SA200-Y, SBT42, GA1A4M, 2N5551
