smbta56m

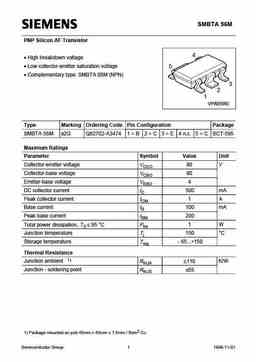

SMBTA 56M PNP Silicon AF Transistor 4 � High breakdown voltage � Low collector-emitter saturation voltage 5 � Complementary type: SMBTA 06M (NPN) 3 2 1 VPW05980 Type Marking Ordering Code Pin Configuration Package SMBTA 56M s2G Q62702-A3474 1 = B 2 = C 3 = E 4 n.c. 5 = C SCT-595 Maximum Ratings Parameter Symbol Value Unit Collector-emitter voltage 80 V VCEO Collector-base voltage 80 VCBO Emitter-base voltage 4 VEBO DC collector current 500 mA IC Peak collector current 1 A ICM Base current 100 mA IB Peak base current 200 IBM 1 W Total power dissipation, TS ? 95 �C Ptot Junction temperature 150 �C Tj Storage temperature - 65...+150 Tstg Thermal Resistance 1) Junction ambient K/W RthJA ? 110 Junction - soldering point RthJS ? 55 1) Package mounted on p
