View s8091xx s8092xx s8093xx s8094xx s8095xx s8096xx-series datasheet:

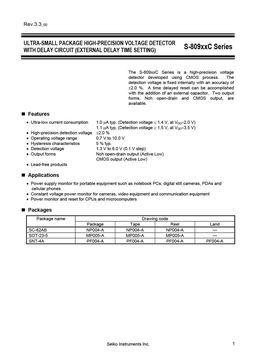

Rev.3.3_00 ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR S-809xxC Series WITH DELAY CIRCUIT (EXTERNAL DELAY TIME SETTING) The S-809xxC Series is a high-precision voltage detector developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0 %. A time delayed reset can be accomplished with the addition of an external capacitor. Two output forms, Nch open-drain and CMOS output, are available. Features • Ultra-low current consumption 1.0 μA typ. (Detection voltage ≤ 1.4 V, at VDD=2.0 V) 1.1 μA typ. (Detection voltage ≥ 1.5 V, at VDD=3.5 V) • High-precision detection voltage ±2.0 % • Operating voltage range 0.7 V to 10.0 V • Hysteresis characteristics 5 % typ. • Detection voltage 1.3 V to 6.0 V (0
