AOB270AL Datasheet and Replacement

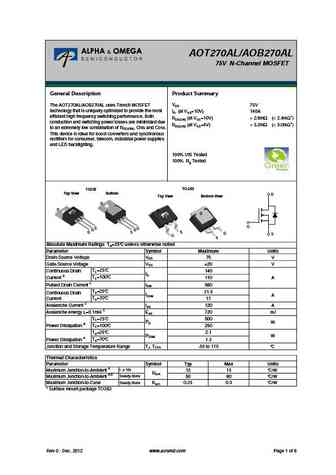

AOT270AL/AOB270AL75V N-Channel MOSFETGeneral Description Product SummaryVDS75VThe AOT270AL/AOB270AL uses Trench MOSFETtechnology that is uniquely optimized to provide the most ID (at VGS=10V) 140Aefficient high frequency switching performance. Both RDS(ON) (at VGS=10V)

isc N-Channel MOSFET Transistor AOB270ALFEATURESDrain Current I = 140A@ T =25D CDrain Source Voltage-: V = 75V(Min)DSSStatic Drain-Source On-Resistance: R = 2.4m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONBe suitable for synchronous rectification for server andgen

AOT270L/AOB270L75V N-Channel MOSFETGeneral Description Product SummaryVDS75VThe AOT270L/AOB270L uses Trench MOSFETtechnology that is uniquely optimized to provide the most ID (at VGS=10V) 140Aefficient high frequency switching performance. Both RDS(ON) (at VGS=10V)

AOT27S60/AOB27S60/AOTF27S60TM600V 27A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT27S60& AOB27S60 & AOTF27S60 have beenfabricated using the advanced MOSTM high voltage IDM 110Aprocess that is designed to deliver high levels of RDS(ON),max 0.16performance and robustness in switching applications. Qg,typ 26nCBy providin

AOT27S60/AOB27S60/AOTF27S60TM600V 27A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT27S60& AOB27S60 & AOTF27S60 have beenfabricated using the advanced MOSTM high voltage IDM 110Aprocess that is designed to deliver high levels of RDS(ON),max 0.16performance and robustness in switching applications. Qg,typ 26nCBy providin

AOT27S60/AOB27S60/AOTF27S60TM600V 27A MOS Power TransistorGeneral Description Product Summary VDS @ Tj,max 700VThe AOT27S60& AOB27S60 & AOTF27S60 have beenfabricated using the advanced MOSTM high voltage IDM 110Aprocess that is designed to deliver high levels of RDS(ON),max 0.16performance and robustness in switching applications. Qg,typ 26nCBy providin

Isc N-Channel MOSFET Transistor AOB27S60FEATURESWith To-263(D2PAK) packageLow input capacitance and gate chargeLow gate input resistance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Volt
