P1606BD Datasheet. Specs and Replacement

Type Designator: P1606BD  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 62 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 42 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 3 V

Qg ⓘ - Total Gate Charge: 55 nC

tr ⓘ - Rise Time: 99 nS

Cossⓘ - Output Capacitance: 178 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0185 Ohm

Package: TO252

  📄📄 Copy

P1606BD substitution

- MOSFET ⓘ Cross-Reference Search



P1606BD datasheet

 ..1. Size:902K  unikc
 p1606bd.pdf pdf_icon

P1606BD

P1606BD N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 18.5m @VGS = 10V 60V 42A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS VGS Gate-Source Voltage 20 V TC = 25 C 42 ID Continuous Drain Current2 TC = 100 C 26 A IDM 110 Pulsed Drain Current1,2 IAS Avalanche Current 4... See More ⇒

 9.1. Size:1320K  allpower

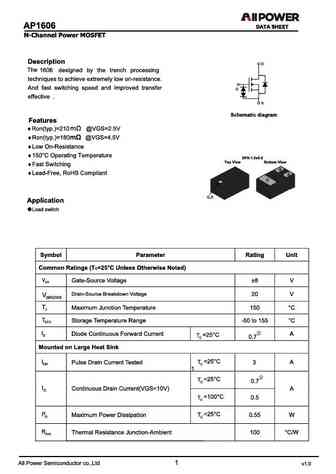

 ap1606.pdf pdf_icon
