FDS2734 Datasheet. Specs and Replacement

Type Designator: FDS2734  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 2.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 250 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 3 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 11 nS

Cossⓘ - Output Capacitance: 85 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.117 Ohm

Package: SO-8

  📄📄 Copy

FDS2734 substitution

- MOSFET ⓘ Cross-Reference Search



FDS2734 datasheet

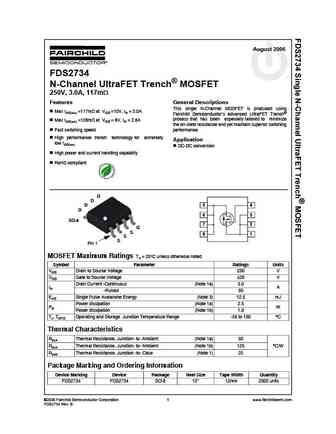

 ..1. Size:390K  fairchild semi
 fds2734.pdf pdf_icon

FDS2734

August 2006 FDS2734 tm N-Channel UItraFET Trench MOSFET 250V, 3.0A, 117m Features General Descriptions This single N-Channel MOSFET is produced using Max rDS(on) =117m at VGS =10V, ID = 3.0A Fairchild Semiconductor s advanced UItraFET Trench process that has been especially tailored to minimize Max rDS(on) =126m at VGS = 6V, ID = 2.8A the on-state resistance and y... See More ⇒

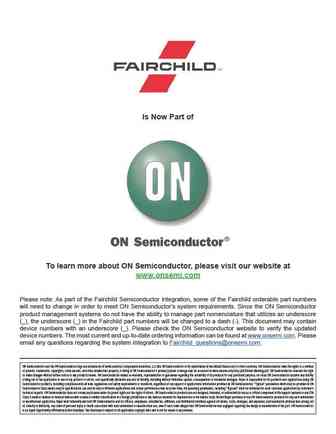

 ..2. Size:480K  onsemi
 fds2734.pdf pdf_icon

FDS2734

Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur... See More ⇒
