STF06N20 PDF and Equivalents Search



STF06N20 Specs and Replacement


   Type Designator: STF06N20
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 25 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 5 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 8.7 nS
   Cossⓘ - Output Capacitance: 24 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.5 Ohm
   Package: TO220F


 STF06N20 substitution

   - MOSFET ⓘ Cross-Reference Search



STF06N20 datasheet

 ..1. Size:207K  samhop
 stf06n20.pdf pdf_icon

STF06N20

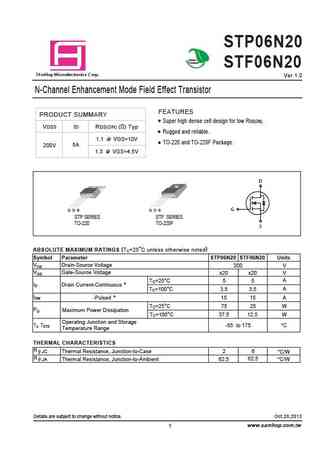

STP06N20 Green Product STF06N20 a S mHop Microelectronics C orp. Ver 1.0 N-Channel Enhancement Mode Field Effect Transistor FEATURES PRODUCT SUMMARY Super high dense cell design for low RDS(ON). VDSS ID RDS(ON) ( ) Typ Rugged and reliable. 1.1 @ VGS=10V TO-220 and TO-220F Package. 200V 5A 1.3 @ VGS=4.5V D G G D S G D S STP SERIES STF SERIES TO-220 TO-220F S ABSOLUTE MAXI... See More ⇒
