FXN40N20C Datasheet. Specs and Replacement

Type Designator: FXN40N20C  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 174 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 200 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 56 nS

Cossⓘ - Output Capacitance: 345 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.06 Ohm

Package: TO220

  📄📄 Copy

FXN40N20C substitution

- MOSFET ⓘ Cross-Reference Search



FXN40N20C datasheet

 ..1. Size:797K  cn fx-semi
 fxn40n20c.pdf pdf_icon

FXN40N20C

FuXin Semiconductor Co., Ltd. FXN40N20C Series Rev.A General Description Features The FXN40N20C uses advanced Planar Vdmos Technology, which VDS = 200V provides high performance in on-state resistance, fast switching ID = 40A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industrial applications ... See More ⇒

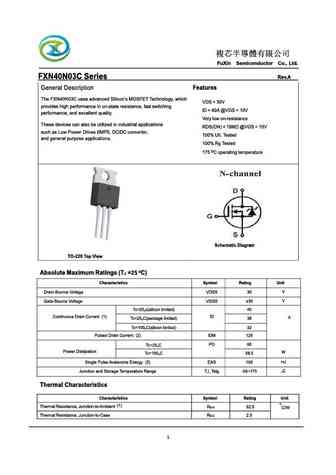

 8.1. Size:678K  cn fx-semi
 fxn40n03c.pdf pdf_icon

FXN40N20C

... See More ⇒

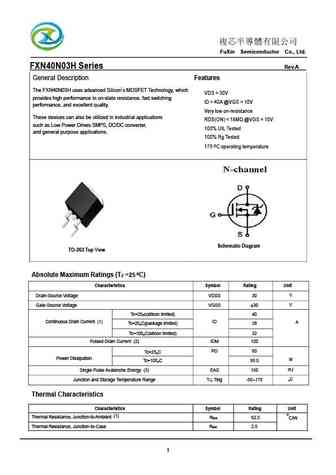

 8.2. Size:333K  cn fx-semi
 fxn40n03h.pdf pdf_icon

FXN40N20C

FuXin Semiconductor Co., Ltd. FXN40N03H Series Rev.A General Description Features The FXN40N03H uses advanced Silicon s MOSFET Technology, which VDS = 30V provides high performance in on-state resistance, fast switching ID = 40A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industr... See More ⇒
