JMPC34N20BJ PDF and Equivalents Search



JMPC34N20BJ Specs and Replacement


   Type Designator: JMPC34N20BJ
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 208 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 34 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 84 nS
   Cossⓘ - Output Capacitance: 159 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.085 Ohm
   Package: TO220


 JMPC34N20BJ substitution

   - MOSFET ⓘ Cross-Reference Search



JMPC34N20BJ datasheet

 ..1. Size:1251K  jiejie micro
 jmpc34n20bj.pdf pdf_icon

JMPC34N20BJ

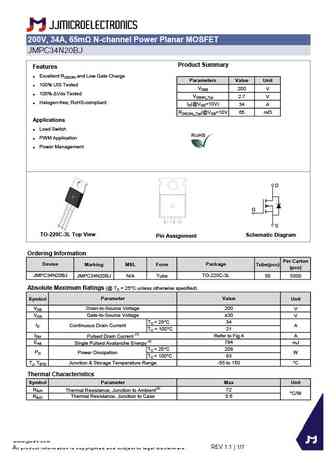

200V, 34A, 65m N-channel Power Planar MOSFET JMPC34N20BJ Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 200 V 100% Vds Tested VGS(th)_Typ 2.7 V Halogen-free; RoHS-compliant ID(@VGS=10V) 34 A RDS(ON)_Typ(@VGS=10V 65 mW Applications Load Switch PWM Application Power Management D G S TO... See More ⇒
