JMPC5N50BJ Datasheet and Replacement
Type Designator: JMPC5N50BJ
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 83 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
|Id| ⓘ - Maximum Drain Current: 5 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Qg ⓘ - Total Gate Charge: 14 nC
tr ⓘ - Rise Time: 17 nS
Cossⓘ - Output Capacitance: 67 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.81 Ohm
Package: TO220
JMPC5N50BJ substitution
JMPC5N50BJ Datasheet (PDF)
jmpc5n50bj.pdf

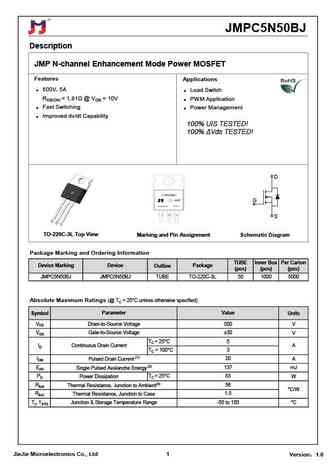

JMPC5N50BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 500V, 5A Load SwitchRDS(ON)
jmpc52n20bj.pdf

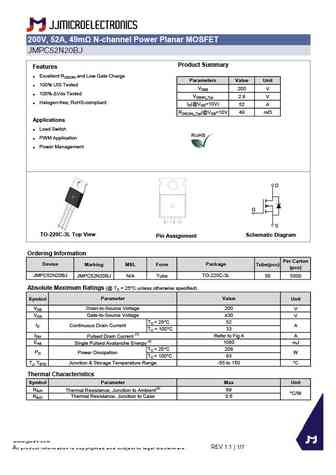

200V, 52A, 49m N-channel Power Planar MOSFETJMPC52N20BJProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 200 V 100% Vds TestedVGS(th)_Typ 2.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 52 ARDS(ON)_Typ(@VGS=10V 49 mWApplications Load Switch PWM Application Power ManagementDG STO
