JMTK75N02A Datasheet. Specs and Replacement

Type Designator: JMTK75N02A  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 39 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 75 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 31 nS

Cossⓘ - Output Capacitance: 396 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0049 Ohm

Package: TO252

  📄📄 Copy

JMTK75N02A substitution

- MOSFET ⓘ Cross-Reference Search



JMTK75N02A datasheet

 ..1. Size:1172K  jiejie micro
 jmtk75n02a.pdf pdf_icon

JMTK75N02A

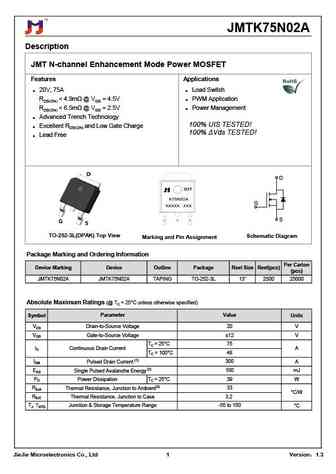

JMTK75N02A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 75A Load Switch RDS(ON) ... See More ⇒

 9.1. Size:1170K  jiejie micro
 jmtk70n07a.pdf pdf_icon

JMTK75N02A

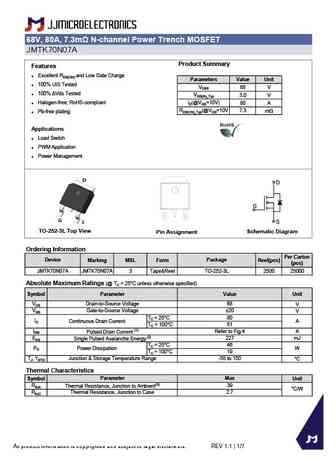

68V, 80A, 7.3m N-channel Power Trench MOSFET JMTK70N07A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 68 V 100% Vds Tested VGS(th)_Typ 3.0 V Halogen-free; RoHS-compliant ID(@VGS=10V) 80 A RDS(ON)_Typ(@VGS=10V 7.3 mW Pb-free plating Applications Load Switch PWM Application Power Manag... See More ⇒
