JMTK80N06A Datasheet and Replacement
Type Designator: JMTK80N06A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 40 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 80 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 65 nS
Cossⓘ - Output Capacitance: 266 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0066 Ohm
Package: TO252
JMTK80N06A substitution
JMTK80N06A Datasheet (PDF)
jmtk80n06a.pdf

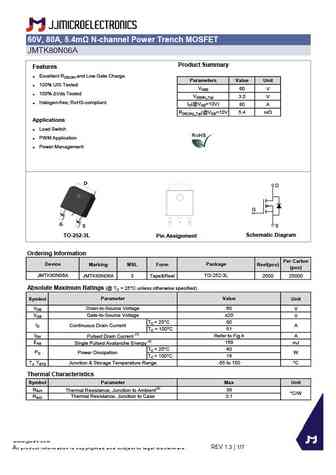

60V, 80A, 5.4m N-channel Power Trench MOSFETJMTK80N06AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 60 V 100% Vds TestedVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 80 ARDS(ON)_Typ(@VGS=10V 5.4 mWApplications Load Switch PWM Application Power ManagementDG SSch
