JMTG60N04B Datasheet. Specs and Replacement

Type Designator: JMTG60N04B  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 32 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 50 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 28 nS

Cossⓘ - Output Capacitance: 167 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0079 Ohm

Package: PDFN5X6-8L

  📄📄 Copy

JMTG60N04B substitution

- MOSFET ⓘ Cross-Reference Search

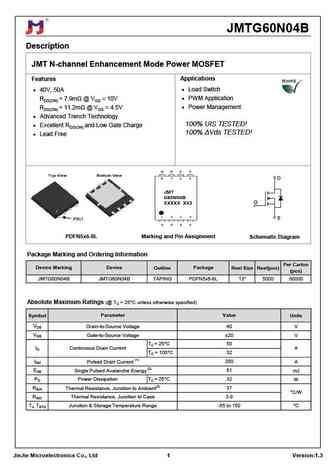

JMTG60N04B datasheet

 ..1. Size:516K  jiejie micro
 jmtg60n04b.pdf pdf_icon

JMTG60N04B

JMTG60N04B Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 40V, 50A Load Switch RDS(ON) ... See More ⇒

Detailed specifications: JMTG3003A, JMTG3005A, JMTG3005B, JMTG3005C, JMTG3008A, JMTG3008D, JMTG320N10A, JMTG4004A, K3569, JMTG90N02A, JMSL0615AGD, JMSL0615AGDQ, JMSL0615AP, JMSL0615APD, JMSL0615AUD, JMSL0615AV, JMSL0615PGDQ
