JMSL0630AG Specs and Replacement
Type Designator: JMSL0630AG
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 35 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 25 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 62 nS
Cossⓘ - Output Capacitance: 92 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.028 Ohm
Package: PDFN5X6-8L
JMSL0630AG substitution
JMSL0630AG datasheet
jmsl0630ag.pdf
JMSL0630AG 60V 22m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low RDS(ON) VDS 60 V Low Gate Charge VGS(th) 1.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 25 A RDS(ON) (@ VGS = 10V) Pb-free Lead Plating 22 m RDS(ON) (@ VGS = 4.5V) 28 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom.,... See More ⇒

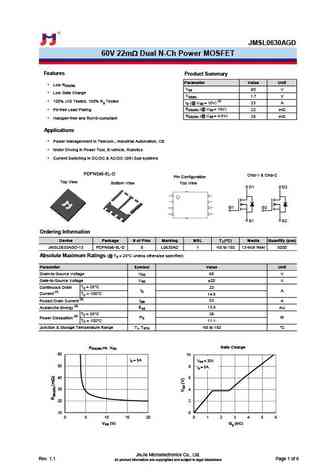

jmsl0630agd.pdf
JMSL0630AGD 60V 22m Dual N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low RDS(ON) VDS 60 V Low Gate Charge VGS(th) 1.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 23 A RDS(ON) (@ VGS = 10V) Pb-free Lead Plating 22 m RDS(ON) (@ VGS = 4.5V) 28 m Halogen-free and RoHS-compliant Applications Power Managerment in ... See More ⇒

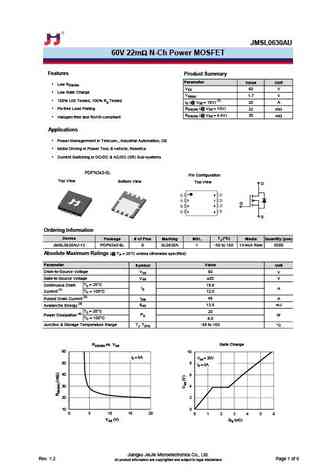

jmsl0630au.pdf
