AP85N08BT Datasheet. Specs and Replacement

Type Designator: AP85N08BT  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 160 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 80 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 85 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 15 nS

Cossⓘ - Output Capacitance: 354 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0085 Ohm

Package: TO263

  📄📄 Copy

AP85N08BT substitution

- MOSFET ⓘ Cross-Reference Search



AP85N08BT datasheet

 ..1. Size:1817K  cn apm
 ap85n08bp ap85n08bt.pdf pdf_icon

AP85N08BT

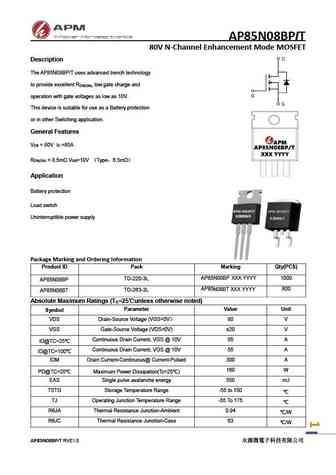

AP85N08BPIT 80V N-Channel Enhancement Mode MOSFET Description The AP85N08BP/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 80V I =85A DS D R ... See More ⇒
