APG110N10NF MOSFET Datasheet: N-Ch, 100V, 110A. Full specification with pinout and replacement list

APG110N10NF Specs and Replacement

Type Designator: APG110N10NF

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 113.6 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 110 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 13 nS

Cossⓘ - Output Capacitance: 645 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.006 Ohm

Package: PDFN5X6-8L

APG110N10NF substitution

- MOSFET ⓘ Cross-Reference Search

APG110N10NF datasheet

..1. Size:1402K cn apm
apg110n10nf.pdf pdf_icon

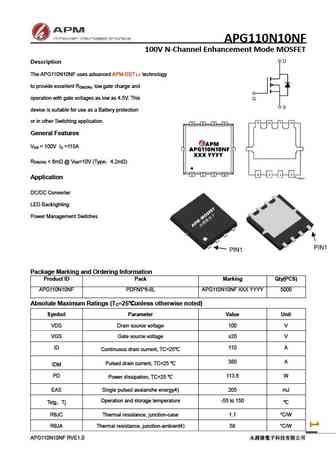

APG110N10NF 100V N-Channel Enhancement Mode MOSFET Description The APG110N10NF uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =110A DS D R ... See More ⇒
