AGM042N10A Datasheet. Specs and Replacement

Type Designator: AGM042N10A  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 142 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 110 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 1342 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0055 Ohm

Package: PDFN5X6

  📄📄 Copy

AGM042N10A substitution

- MOSFET ⓘ Cross-Reference Search



AGM042N10A datasheet

 ..1. Size:1493K  cn agmsemi

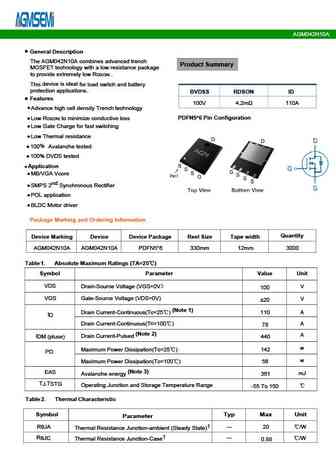

 agm042n10a.pdf pdf_icon

AGM042N10A

AGM042N10A VDS ,Drain to Source Voltage (V) T , Junction Temperature ( ) J Fig.1 Typical Output Characteristics Fig.2 Normalized RDSON vs. T J T , Junction Temperature ( ) Qg , Gate Charge (nC) J Fig.3 Normalized V vs. T Fig.4 Gate Charge Waveform th J I , Continuous Drain Current (A) V , Gate to Source Voltage (V) D GS Fig.5 Turn-On Resistance vs. ID Fig.6 Turn-On Resistan... See More ⇒

 5.1. Size:1264K  cn agmsemi

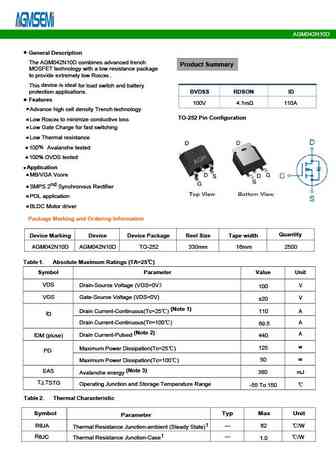

 agm042n10d.pdf pdf_icon

AGM042N10A

AGM042N10D Silicon N-Channel MOSFET Typical Performance Characteristics Figure 1. Output Characteristics Figure 2. Transfer Characteristics Figure 3. Drain-to-Source On Resistance Figure 4. Body Diode Forward Voltage vs Drain Current vs Source Current and Temperature Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics www.agm-mos.com 3 VER2.71 AGM042... See More ⇒

Detailed specifications: AGM025N10C, AGM025N13LL, AGM028N08A, AGM035N10A, AGM035N10C, AGM035N10H, AGM038N10A, AGM03N85H, 2N7002, AGM1030MBP, AGM1030MNA, AGM1075D, AGM1075-G, AGM1075MBP, AGM1075MN, AGM1075MNA, AGM1075S
