2SK3018WT Datasheet. Specs and Replacement
Type Designator: 2SK3018WT 📄📄
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 0.15 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 0.1 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 35 nS
Cossⓘ - Output Capacitance: 9 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 8 Ohm
Package: SOT523
📄📄 Copy
2SK3018WT substitution
- MOSFET ⓘ Cross-Reference Search
2SK3018WT datasheet

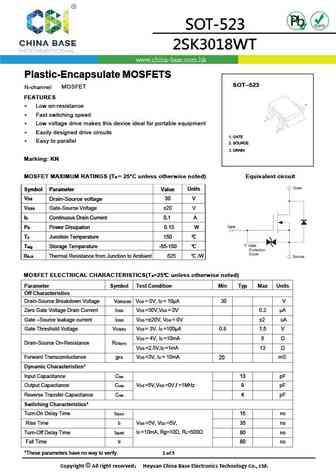

2sk3018wt.pdf
Plastic-Encapsulate MOSFETS SOT 523 N-channel MOSFET FEATURES Low on-resistance Fast switching speed Low voltage drive makes this device ideal for portable equipment Easily designed drive circuits 1. GATE Easy to parallel 2. SOURCE 3. DRAIN Marking KN MOSFET MAXIMUM RATINGS (Ta = 25 C unless otherwise noted) Equivalent circuit Units Symbol Parameter Value ... See More ⇒
2sk3018wt1.pdf
FM120-M WILLAS 2SK3018WT1 THRU SOT-323 Plastic-Encapsulate MOSFETS FM1200-M 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS -20V- 200V SOD-123 PACKAGE Pb Free Product Package outline Features Batch process design, excellent power dissipation offers better rMOSFET N-channel everse leakage current and thermal resistance. SOD-123H Low profile surface mounted applicat... See More ⇒
l2sk3018wt1g s-l2sk3018wt1g.pdf
L2SK3018WT1G S-L2SK3018WT1G N-channel MOSFET 100 mA, 30 V 1. FEATURES We declare that the material of product compliance with RoHS requirements and Halogen Free. S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 SC70(SOT-323) qualified and PPAP capable. Low on-resistance. Drain (3) Fast switching sp... See More ⇒
l2sk3018wt1g.pdf
LESHAN RADIO COMPANY, LTD. Silicon N-channel MOSFET L2SK3018WT1G 100 mA, 30 V 3 Features 1) Low on-resistance. 1 2) Fast switching speed. 2 3) Low voltage drive (2.5V) makes this device ideal for portable equipment. 4) Easily designed drive circuits. SC-70 5) Easy to parallel. We declare that the material of product compliance with RoHS requirements. N - Channel MAX... See More ⇒
