Справочник транзисторов. BC558



Биполярный транзистор BC558 - описание производителя. Основные параметры. Даташиты.


   Наименование производителя: BC558
   Тип материала: Si
   Полярность: PNP
   Максимальная рассеиваемая мощность (Pc): 0.5 W
   Макcимально допустимое напряжение коллектор-база (Ucb): 30 V
   Макcимально допустимое напряжение коллектор-эмиттер (Uce): 25 V
   Макcимально допустимое напряжение эмиттер-база (Ueb): 5 V
   Макcимальный постоянный ток коллектора (Ic): 0.1 A
   Предельная температура PN-перехода (Tj): 150 °C
   Граничная частота коэффициента передачи тока (ft): 75 MHz
   Статический коэффициент передачи тока (hfe): 75
   Корпус транзистора: TO92

 Аналоги (замена) для BC558





BC558 Datasheet (PDF)

 ..1. Size:220K  motorola
bc556 bc557 bc558 2.pdf

BC558
BC558

MOTOROLAOrder this documentSEMICONDUCTOR TECHNICAL DATAby BC556/DAmplifier TransistorsBC556,BPNP SiliconBC557A,B,CCOLLECTORBC558B12BASE3EMITTERMAXIMUM RATINGS12BC

 ..2. Size:159K  motorola
bc556 bc557 bc558.pdf

BC558
BC558

MOTOROLAOrder this documentSEMICONDUCTOR TECHNICAL DATAby BC556/DAmplifier TransistorsBC556,BPNP SiliconBC557A,B,CCOLLECTORBC558B12BASE3EMITTERMAXIMUM RATINGS12BC

 ..3. Size:43K  fairchild semi
bc556 bc557 bc558 bc559 bc560.pdf

BC558
BC558

BC556/557/558/559/560Switching and Amplifier High Voltage: BC556, VCEO= -65V Low Noise: BC559, BC560 Complement to BC546 ... BC 550TO-9211. Collector 2. Base 3. EmitterPNP Epitaxial Silicon TransistorAbsolute Maximum Ratings Ta=25C unless otherwise noted Symbol Parameter Value UnitsVCBO Collector-Base Voltage : BC556 -80 V: BC557/560 -50 V: BC558/559 -30 V

 ..4. Size:353K  cdil
bc556 bc557 bc558.pdf

BC558
BC558

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyBC556, A, B, PNP SILICON PLANAR EPITAXIAL TRANSISTORSBC557, A, B, CBC558, A, B, CTO-92Plastic PackageFor Lead Free Parts, Device Part # will be Prefixed with EB "T"CAmplifier TransistorsABSOLUTE MAXIMUM RATINGS (Ta=25C)DESCRIPTION SYMBOL BC556 BC557 BC558 UNITSCollector Emi

 ..5. Size:465K  jiangsu
bc556 bc557 bc558.pdf

BC558
BC558

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92 Plastic-Encapsulate Transistors TO 92 BC556/BC557/BC558 TRANSISTOR (PNP) FEATURES High Voltage1. COLLECTOR Complement to BC546,BC547,BC548 2. BASE 3. EMITTER MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitBC556 -80VCBO Collector-Base Voltage BC557 -50 V BC558 -30BC556 -6

 ..6. Size:274K  kec
bc556 bc557 bc558.pdf

BC558
BC558

SEMICONDUCTOR BC556/7/8TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTORGENERAL PURPOSE APPLICATION.SWITCHING APPLICATION .B CFEATURESFor Complementary With NPN Type BC546/547/548.N DIM MILLIMETERSA 4.70 MAXEKG B 4.80 MAXC 3.70 MAXDD 0.45E 1.00MAXIMUM RATING (Ta=25 )F 1.27G 0.85CHARACTERISTIC SYMBOL RATING UNITH 0.45_H J 14.00 + 0.50BC556 -80K 0.55 M

 ..7. Size:573K  lge
bc556 bc557 bc558.pdf

BC558
BC558

BC556/557/558(PNP)TO-92 Bipolar TransistorsTO-92 1. COLLECTOR 2. BASE 3. EMITTER Features High Voltage Complement to BC546/BC547/BC548 MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value Units Collector-Base Voltage BC556 -80 VCBO BC557 -50 V BC558 -30-65 -45 V VCEO Collector-Emitter Voltage -30 Dimensions in inches and (millimeter

 ..8. Size:2241K  wietron
bc556 bc557 bc558.pdf

BC558
BC558

BC556, A/BBC557, A/B/CBC558, A/B/CPNP General Purpose TransistorCOLLECTOR3P b Lead(Pb)-Free2BASE1231EMITTERTO-92Maximum Ratings ( T =25 C unless otherwise noted)ARating Symbol BC556 BC557 BC558 UnitV -65 -45Collector-Emitter Voltage ECO -30V-30VCollector-Base Voltage CBO -80 -50 VVEBOEmitter-Base Voltage -5 -5 -5 Vl 100Collector Curre

 0.1. Size:349K  onsemi
bc556abu bc556ata bc556bta bc556btf bc556btfr bc557ata bc557bta bc557btf bc558bta bc559bta bc559cta bc560cta.pdf

BC558
BC558

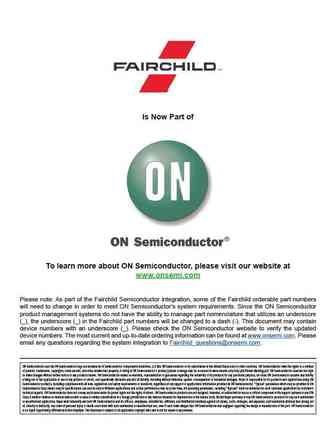

Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur

 0.2. Size:81K  onsemi
bc556b bc557a-b-c bc558b.pdf

BC558
BC558

BC556B, BC557A, B, C,BC558BAmplifier TransistorsPNP Siliconhttp://onsemi.comFeatures Pb-Free Packages are Available*COLLECTOR1MAXIMUM RATINGS 2BASERating Symbol Value UnitCollector - Emitter Voltage VCEO Vdc3BC556 -65EMITTERBC557 -45BC558 -30Collector - Base Voltage VCBO VdcBC556 -80BC557 -50BC558 -30TO-92Emitter - Base Voltage VEBO -5.0 Vdc CASE

 0.3. Size:94K  auk
sbc558.pdf

BC558
BC558

SBC558SemiconductorSemiconductorPNP Silicon TransistorDescriptions General purpose application Switching applicationFeatures High voltage : VCEO=-30V Complementary pair with SBC548Ordering InformationType NO. Marking Package Code SBC558 SBC558 TO-92Outline Dimensions unit : mm3.450.14.50.12.250.10.40.022.060.11.27 Typ.2.54 Typ.

 0.4. Size:80K  diotec
bc556abk bc557abk bc558abk bc559abk bc556bbk bc557bbk bc558bbk bc559bbk bc556cbk bc557cbk bc558cbk bc559cbk.pdf

BC558
BC558

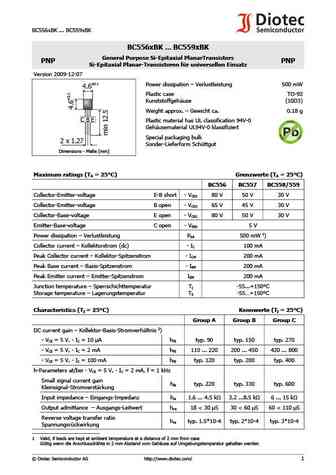

BC556xBK ... BC559xBKBC556xBK ... BC559xBKGeneral Purpose Si-Epitaxial PlanarTransistorsPNP PNPSi-Epitaxial Planar-Transistoren fr universellen EinsatzVersion 2009-12-070.1Power dissipation Verlustleistung 500 mW4.6Plastic case TO-92Kunststoffgehuse (10D3)Weight approx. Gewicht ca. 0.18 gC B EPlastic material has UL classification 94V-0Gehusematerial
