BUH1215 Datasheet and Replacement


   Type Designator: BUH1215
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 200 W
   Maximum Collector-Base Voltage |Vcb|: 1500 V
   Maximum Collector-Emitter Voltage |Vce|: 700 V
   Maximum Emitter-Base Voltage |Veb|: 10 V
   Maximum Collector Current |Ic max|: 19 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -
   Package: TO218


 BUH1215 Substitution

   - BJT ⓘ Cross-Reference Search



BUH1215 Datasheet (PDF)

 ..1. Size:74K  st
 buh1215.pdf pdf_icon

BUH1215

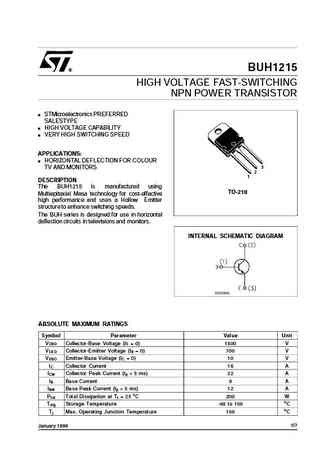

BUH1215 HIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR STMicroelectronics PREFERREDSALESTYPE HIGH VOLTAGE CAPABILITY VERY HIGH SWITCHING SPEEDAPPLICATIONS: HORIZONTAL DEFLECTION FOR COLOUR3TV AND MONITORS21DESCRIPTIONThe BUH1215 is manufactured usingTO-218Multiepitaxial Mesa technology for cost-effectivehigh performance and uses a Hollow Emitterstructur

 ..2. Size:214K  inchange semiconductor
 buh1215.pdf pdf_icon

BUH1215

isc Silicon NPN Power Transistor BUH1215DESCRIPTIONCollector-Emitter Sustaining Voltage-: V = 700V(Min.)CEO(SUS)High Speed SwitchingMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in horizontal deflection circuits in televisionsand monitors.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UN
