BFS540 Datasheet and Replacement


   Type Designator: BFS540
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 20 V
   Maximum Collector-Emitter Voltage |Vce|: 15 V
   Maximum Emitter-Base Voltage |Veb|: 2.5 V
   Maximum Collector Current |Ic max|: 0.12 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Transition Frequency (ft): 9000 MHz
   Collector Capacitance (Cc): 0.9 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: SOT323 SC70

 BFS540 Transistor Equivalent Substitute - Cross-Reference Search



BFS540 Datasheet (PDF)

 ..1. Size:112K  philips
 bfs540 4.pdf pdf_icon

BFS540

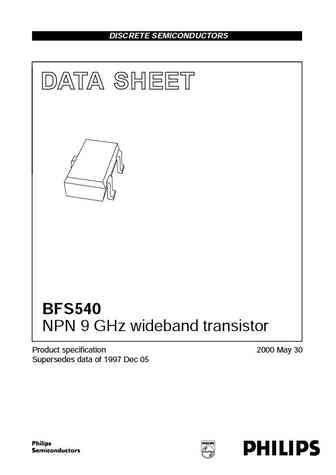

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D102 BFS540 NPN 9 GHz wideband transistor Product specification 2000 May 30 Supersedes data of 1997 Dec 05 Philips Semiconductors Product specification NPN 9 GHz wideband transistor BFS540 FEATURES DESCRIPTION High power gain NPN transistor in a SOT323 plastic package. Low noise figure 3 handbook, 2 columns High tr... See More ⇒

 ..2. Size:273K  philips
 bfs540.pdf pdf_icon

BFS540

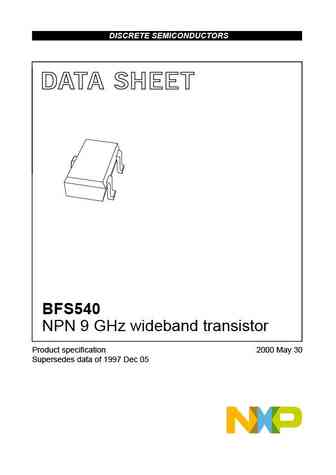

DISCRETE SEMICONDUCTORS DATA SHEET dbook, halfpage M3D102 BFS540 NPN 9 GHz wideband transistor Product specification 2000 May 30 Supersedes data of 1997 Dec 05 NXP Semiconductors Product specification NPN 9 GHz wideband transistor BFS540 FEATURES DESCRIPTION High power gain NPN transistor in a SOT323 plastic package. Low noise figure 3 handbook, 2 columns High tr... See More ⇒
