Type Designator: ST2001HI

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 55 W

Maximum Collector-Base Voltage |Vcb|: 1500 V

Maximum Collector-Emitter Voltage |Vce|: 600 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 10 A

Max. Operating Junction Temperature (Tj): 150 °C

Forward Current Transfer Ratio (hFE), MIN: 5

Noise Figure, dB: -

Package: ISOWATT218

ST2001HI Transistor Equivalent Substitute - Cross-Reference Search



ST2001HI Datasheet (PDF)

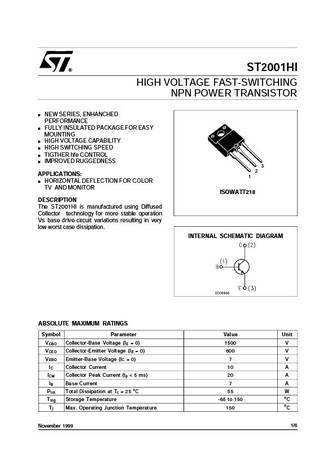

0.1. st2001hi.pdf Size:67K _1

ST2001HI
ST2001HI

ST2001HI HIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR NEW SERIES, ENHANCHEDPERFORMANCE FULLY INSULATED PACKAGE FOR EASYMOUNTING HIGH VOLTAGE CAPABILITY HIGH SWITCHING SPEED TIGTHER hfe CONTROL IMPROVED RUGGEDNESS32APPLICATIONS:1 HORIZONTAL DEFLECTION FOR COLORTV AND MONITORISOWATT218DESCRIPTIONThe ST2001HI is manufactured using DiffusedCollector t

8.1. st2001.pdf Size:68K _st

ST2001HI
ST2001HI

ST2001HI HIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR NEW SERIES, ENHANCHEDPERFORMANCE FULLY INSULATED PACKAGE FOR EASYMOUNTING HIGH VOLTAGE CAPABILITY HIGH SWITCHING SPEED TIGTHER hfe CONTROL IMPROVED RUGGEDNESS32APPLICATIONS:1 HORIZONTAL DEFLECTION FOR COLORTV AND MONITORISOWATT218DESCRIPTIONThe ST2001HI is manufactured using collectordiffused t

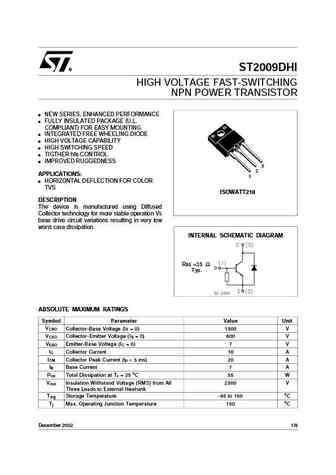

 9.1. st2009dhi.pdf Size:260K _st

ST2001HI
ST2001HI

ST2009DHIHIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR NEW SERIES, ENHANCED PERFORMANCE FULLY INSULATED PACKAGE (U.L.COMPLIANT) FOR EASY MOUNTING INTEGRATED FREE WHEELING DIODE HIGH VOLTAGE CAPABILITY HIGH SWITCHING SPEED TIGTHER hfe CONTROL IMPROVED RUGGEDNESS32APPLICATIONS: 1 HORIZONTAL DEFLECTION FOR COLORTVS ISOWATT218DESCRIPTION The device is m

9.2. sst200 sst200a.pdf Size:67K _vishay

ST2001HI
ST2001HI

SST200/200AVishay SiliconixN-Channel JFETsPRODUCT SUMMARYVGS(off) (V) V(BR)GSS Min (V) gfS Min (mS) IDSS Min (mA)-0.3 to -0.9 -25 0.25 0.15FEATURES BENEFITS APPLICATIONSD Low Cutoff Voltage:
